How To Build Shower Pan With Linear Drain

These lend themselves to linear shower drains that use clamp down devices and no body flange. They are available in 27 36 and 48 with a wave pattern a small square pattern or with a tileable drain plate.

7 Tricks To Turn Your Tub Into An Amazing Walk In Shower Bathroom Shower Design Bathroom Remodel Shower Tile Shower Drain

Again the bucket mortar mixer is a godsend and helps get the mix to the correct consistency.

How to build shower pan with linear drain. Pre-made Pans for Sale. HYDRO BAN Barrier Free Shower using the HYDRO BAN Linear Pre-Sloped Shower Pan Linear Drain and HYDRO BAN Pre-Sloped Ramp. After designing and building your shower floor you can consider a linear shower drain as the final touch to an architectural masterpiece.

In this linear drain shower we are using KERDI-BOARD building panels fastened directly to the studs instead of gypsum or cement board tocreate a bonded waterproof assembly. Lineary drains on the other hand can be installed by connecting to the drain waste line or using a traditional two-piece clamping collar drain body. This video takes you through the step by step process of installing Oatey PVC Shower Pan Liner.

Bolt down the top half of the drain assembly. For a 42 in x 72 in Pan with the drain on the short side I would use the 48 in x 24 in wedi base extension 73783528 with the 48 in x 60 in x 2-12 in wedi fundo riolito shower base 07510012. This install is more common in metropolitan areas where code may require a metal pan.

Unfortunately there are tons of pictures on Pinterest and Instagram that show linear drains in many different configurationsalong the plumbing wall back wall under benches etc. Run a bead of silicone caulk around the outer edge of the flange. Oatey PVC Shower Pan Liner is an economical flexible liner.

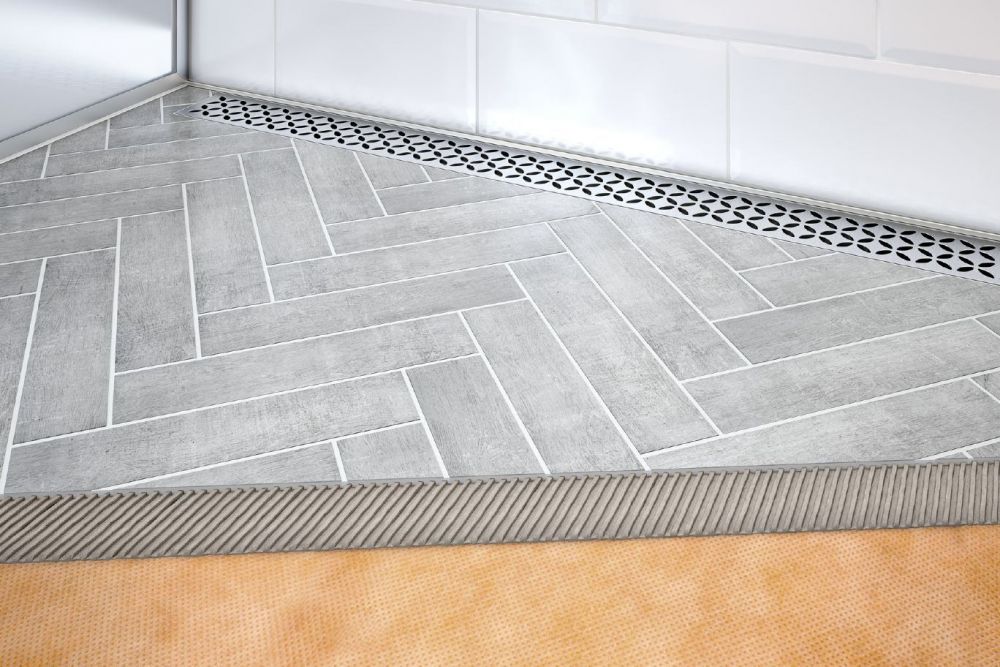

Construct a Trap and Place the Drain. Fitting the Linear Drain The Kerdi-Line linear drain comes with Kerdi membrane already attached. Measure the distances between the studs on your walls where you plan on building your shower pan and write them down.

Build the Walls and Expose the Drain. Linear shower drain options are some of the most diverse in the remodeling industry. If the shower pan is a wedge and has a linear drain then positioning the shower pan the.

The shower walls have been framed like any other wall with 2x 4 studs generally 16 on-center and. KERDI-BOARD is a lightweight XPS foam panel that is inherently waterproof. A metal sheet that is formed to create the shower pan area.

Traditional waterproofing methods rely on building a shower pan with copper pan hot mop PVC liner fiberglass lead pan or a rubber liner. Tile contractor Tom Bouchard shows how to make a tile-ready watertight sloped shower pan with a linear drain using Schluter Kerdi-Board Kerdi membrane and thinset mortar. Remove the drain add a temporary pipe and pack the mud bed along the back wall.

Building a Shower Pan With Vinyl Liner. The linear drain body is stainless steel and that gets attached to the plastic drain pipe with a rubber Fernco coupling that has two hose clamps. Use a circular saw to cut boards that are 2 by 6 inches 51 cm 152 cm to size based on the measurements you took.

Shower pans require at least 14 slope per linear foot for proper drainage and to prevent puddling. Weve worked with this plumber on other jobs closer to home and weve taught them not to glue the pipe into the P trap Boucher explains. Be sure to leave room for final thinset and tile application.

How to install a FLANGED shower drain. Apply mortar over the waterproof shower pan liner starting from the drain and continuing to the wall. If the shower pan area is larger than the sheet dimension the lead material must be welded together.

Using a level create a 1-2 slope from the wall to the drain. You will need to cut the 24 in side to 12 in on the extension to get your 72 in and the installation height on the extension must be increased because the connected shower base is thicker than 15 in at perimeter. The combination of these HYDRO BAN Shower System products along with HYDRO BAN liquid applied waterproofing membrane thin-set and grout provide a zero entry shower that is ADA compliant.

TruLine Linear Drains - httpgooglIsHLhRTrugards TruLine Linear Shower Drain Installation Video gives you a walk through of how to properly install a lin. You dont have to settle on a specific design or color restraint either. Cut out the vinyl liner for the drain with a utility knife cutting just outside of the bolt holes.

Pre-made Pans for Sale. If they dont glue the plastic pipe into the P trap we can just pull the pipe out cut it to length attach it to the steel drain body and then glue the end of the plastic pipe into the trap as we set the. Cover the top of the drain with duct tape to protect it during the installation of the mortar bed and tiling.

The tileable drain plate is an. Build a Shower Curb. Then set the linear drain and begin packing the entire shower pan.

Frame out the shower pan using 2 by 6 inches 51 cm 152 cm boards. The membrane is layered between mortar beds and the corners are folded to create the shower pan liner. Here Boucher test-fits the drain into the hole in the floor.

Non-Flanged Linear Shower Drain Installation Method. Linear drains add an additional level of complexity to curbless showers. The top of the drain should be level and 116 below the adjacent tile.

We now have linear or trench drains that work great with our pans. For a typical center point drain installation requires a two-piece clamping collar to be attached to the waste pipe while a linear drain easily attaches directly to the waste pipe.
